Specifications
| Item Code | 212142 |
|---|---|
| Model | DG801 |

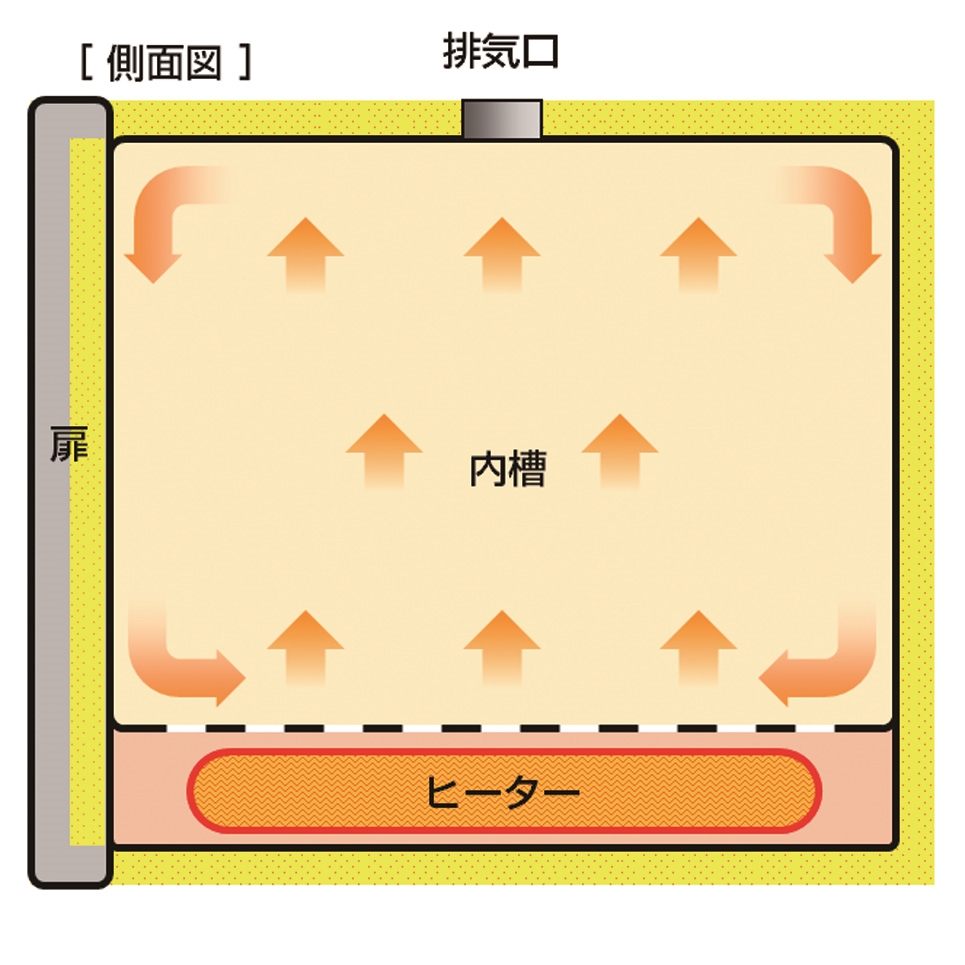

| Method | Natural convection |
| Operating temp. range | RT＋5 to 70℃ |
| Interior material | Stainless steel, SUS304 |
| Exterior | Cold rolled steel plate with chemical proofing coating |
| Heater | Stainless steel pipe heater |
| Heater | 1200 W |
| Observation window (W×Hmm) | 300×800 |
| Exhaust port | 2 pcs |
| Germicidal lamp | — |
| Temp. control | PID control |
| Operation function | Fixed temp., Quick auto stop, Auto start, Auto stop operation |
| Additional function | Calibration offset, Key lock, Power outage compensation |
| Sensor | K thermocouple |
| Safety device | Self-diagnosis function, Independent overheat protector, Overcurrent ELB |
| Shelf plate with standard load | 15kg / piece |
| Shelf support step number/pitch | 29 steps / 30mm |
| Shelf plate | Stainless punching metal, 4 pcs |
| Shelf bracket | 8 pcs |
| Water pan | 1 pc |
| Internal dimensions（W×D×H mm） | 620×620×1195mm |
| External dimensions（W×D×H mm） | 674×711×1586mm |
| Remarks(dimensions) | 460L |
| Power Source | AC115V/AC220V 50/60Hz, Single phase |
| Weight | 95kg |
‘
‘
‘
