Specification
| Product Code | Model | Circulation Type | Operating Temp. | Temp. Adjustment Accuracy | Temp. fluctuation | Temp. Distribution Accuracy | Temp. gradient | Max. Temp. Reaching Time | Interior Material | Exterior Material | Heat Insulating Material | Heater | Sensor | Cable Hole | Exhaust Port | Observation Window | Temp. Control System | Temp. Setting | Temp. Display | Other Display | Timer | Timer Resolution | Operating Function | Additional Function | Heater Circuit Control | Safety Countermeasure | Internal dimensions（W×D×H mm） | External dimensions（W×D×H mm） | Power supply | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

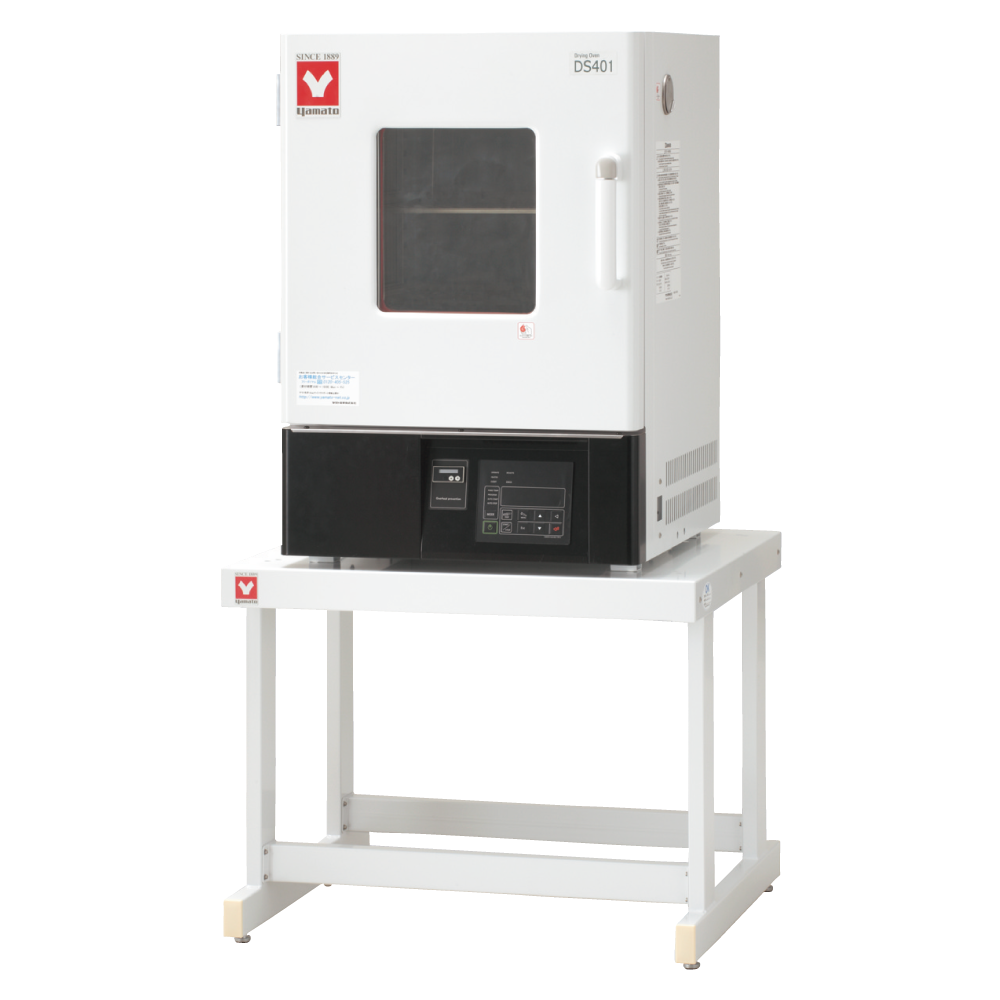

| 212905 | DS401 | Natural Convection | Room Temp. +5 to 260°C | ±1.0°C (at 260°C ) | 3.0°C (at 260°C ) | ±5.0°C (at 260°C ) | 20°C (at 260°C) | Approx. 70 min | Stainless Steel | Cold Rolled Steel Plate with Melamine Resin Baked Finish | Glass Wool | SUS Pipe heater 1.2kW | K-Thermocouple (for temp. adjustment and overheat prevention) | I.D. 33mm (Right Side) | I.D. 33mm x 2 (Top Side) | 250 x 280mm Tempered Glass x 2 pcs | PID Control by Micro Computer | Digital Setting by UP/DOWN Key | Digital Display by Green LED | Temp. Pattern Display for Operating Display by LED | 1min. to 9hrs.59min. | 1min. | Fixed Temp. Operation, Automatic Start, Automatic Stop, Program Operation , Quick automatic stop | Total Operation Hours Timer (to 65535hrs.), calendar time ( 24 hours), calibration offset, Power discharge, CO2 discharge, power failure return mode, user configuration information | Triac Zero-cross Type | Self Diagnosis Function (Abnormal Temp. Sensor, Heater Wire Broken, Triac Short Circuit, Automatic Overheat Prevention), Independent Overheating Prevention, Key Lock, Electric Leakage Breaker | 450×490×450mm | 560×600×820mm | AC115V 11A Single phase |
51kg |
| 212906 | DS411 | Natural Convection | Room Temp. +5 to 260°C | ±1.0°C (at 260°C) | 3.0°C (at 260°C) | ±5.0°C (at 260°C) | 20°C (at 260°C) | Approx. 70 min | Stainless Steel | Cold Rolled Steel Plate with Melamine Resin Baked Finish | Glass Wool | SUS Pipe heater 1.2kW | K-Thermocouple (for temp. adjustment and overheat prevention) | I.D. 33mm (Right Side) | I.D. 33mm x 2 (Top Side) | 250 x 280mm Tempered Glass x 2 pcs | PID Control by Micro Computer | Digital Setting by UP/DOWN Key | Digital Display by Green LED | Temp. Pattern Display for Operating Display by LED | 1min. to 9hrs.59min. | 1min. | Fixed Temp. Operation, Automatic Start, Automatic Stop, Program Operation , Quick automatic stop | Total Operation Hours Timer (to 65535hrs.), calendar time ( 24 hours), calibration offset, Power discharge, CO2 discharge, power failure return mode, user configuration information | Triac Zero-cross Type | Self Diagnosis Function (Abnormal Temp. Sensor, Heater Wire Broken, Triac Short Circuit, Automatic Overheat Prevention), Independent Overheating Prevention, Key Lock, Electric Leakage Breaker | 450×490×450mm | 560×600×820mm | AC220V 6A Single-phase |
51kg |

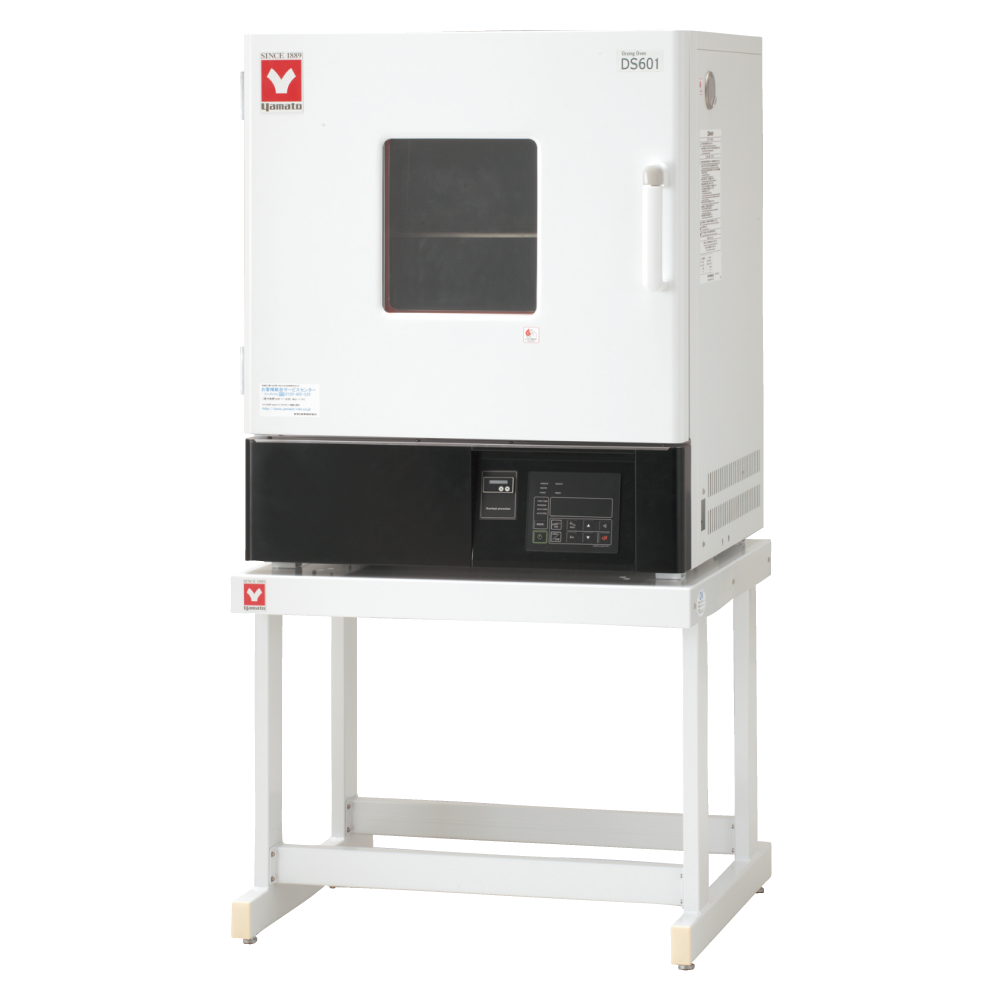

| 212907 | DS601 | Natural Convection | Room Temp. +5 to 260°C | ±1.0°C (at 260°C) | 3.0°C (at 260°C) | ±5.0°C (at 260°C) | 20°C (at 260°C) | Approx. 90 min | Stainless Steel | Cold Rolled Steel Plate with Melamine Resin Baked Finish | Glass Wool | SUS Pipe heater 1.36kW | K-Thermocouple (for temp. adjustment and overheat prevention) | I.D. 33mm (Right Side) | I.D. 33mm x 2 (Top Side) | 250 x 280mm Tempered Glass x 2 pcs | PID Control by Micro Computer | Digital Setting by UP/DOWN Key | Digital Display by Green LED | Temp. Pattern Display for Operating Display by LED | 1min. to 9hrs.59min. | 1min. | Fixed Temp. Operation, Automatic Start, Automatic Stop, Program Operation , Quick automatic stop | Total Operation Hours Timer (to 65535hrs.), calendar time ( 24 hours), calibration offset, Power discharge, CO2 discharge, power failure return mode, user configuration information | Triac Zero-cross Type | Self Diagnosis Function (Abnormal Temp. Sensor, Heater Wire Broken, Triac Short Circuit, Automatic Overheat Prevention), Independent Overheating Prevention, Key Lock, Electric Leakage Breaker | 600×540×500mm | 710×650×870mm | AC115V 13A Single phase |
64kg |
| 212908 | DS611 | Natural Convection | Room Temp. +5 to 260°C | ±1.0°C (at 260°C) | 3.0°C (at 260°C) | ±5.0°C (at 260°C) | 20°C (at 260°C) | Approx. 90 min | Stainless Steel | Cold Rolled Steel Plate with Melamine Resin Baked Finish | Glass Wool | SUS Pipe heater 1.36kW | K-Thermocouple (for temp. adjustment and overheat prevention) | I.D. 33mm (Right Side) | I.D. 33mm x 2 (Top Side) | 250 x 280mm Tempered Glass x 2 pcs | PID Control by Micro Computer | Digital Setting by UP/DOWN Key | Digital Display by Green LED | Temp. Pattern Display for Operating Display by LED | 1min. to 9hrs.59min. | 1min. | Fixed Temp. Operation, Automatic Start, Automatic Stop, Program Operation , Quick automatic stop | Total Operation Hours Timer (to 65535hrs.), calendar time ( 24 hours), calibration offset, Power discharge, CO2 discharge, power failure return mode, user configuration information | Triac Zero-cross Type | Self Diagnosis Function (Abnormal Temp. Sensor, Heater Wire Broken, Triac Short Circuit, Automatic Overheat Prevention), Independent Overheating Prevention, Key Lock, Electric Leakage Breaker | 600×540×500mm | 710×650×870mm | AC220V 7A Single phase |
64kg |
