3-6719-01　Dry Vacuum Pump (Corrosion Resistance ) 1 Stage　GM-20S-AC

Update Terakhir
Negara Asal
Jepang
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

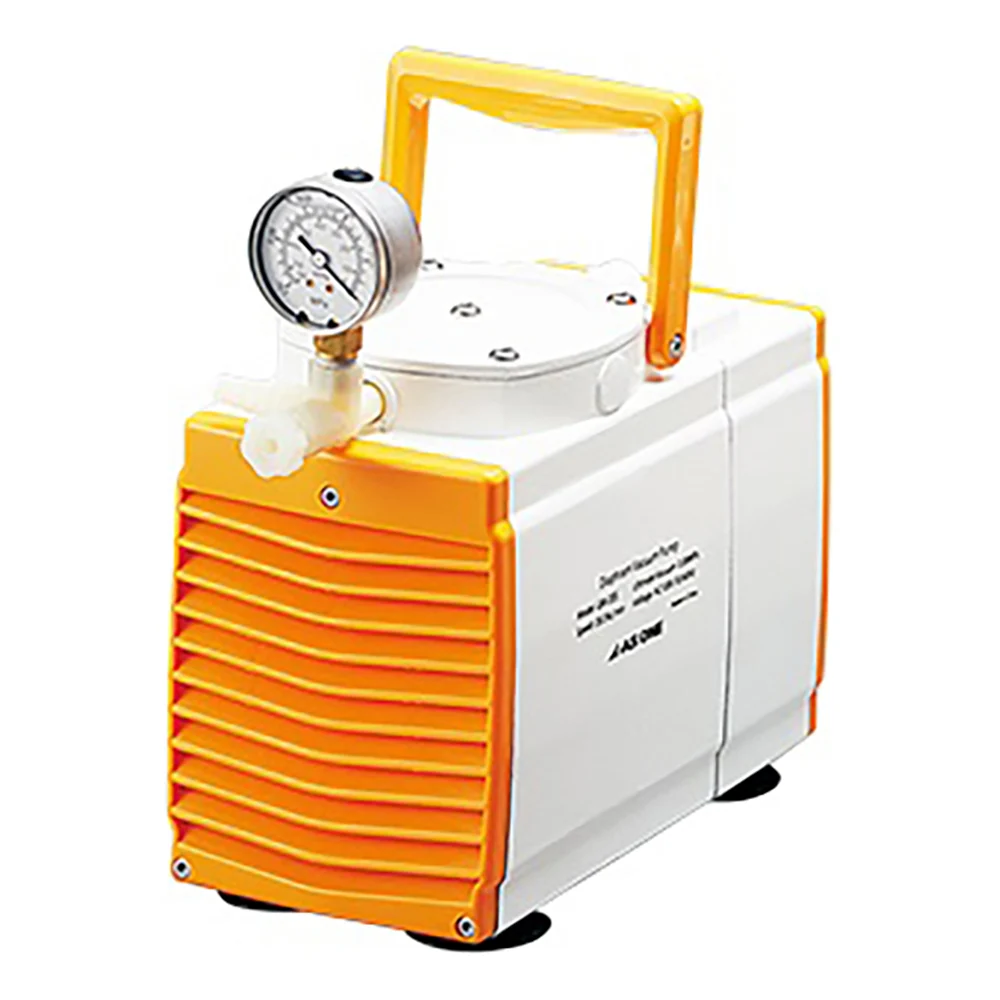

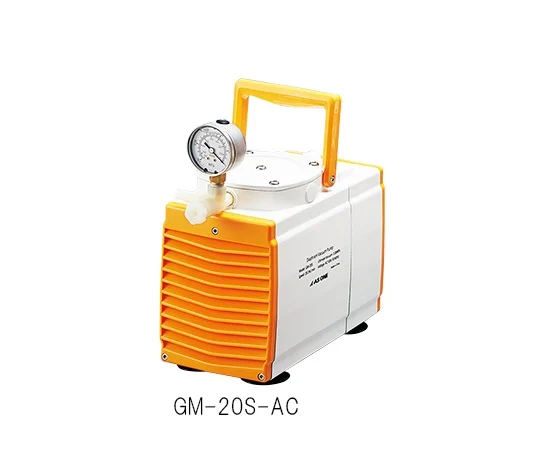

Order No. 3-6719-01
Model No. GM-20S-AC
JAN Code 4582110973130

Features

  • Oil-free and clean diaphragm type dry pump with no contamination by oil.
  • It is suitable for vacuum applications in rotary evaporators and chromatograms.
  • All the contact gas parts are coated with PTFE (tetrafluoroethylene) so they have excellent corrosion resistance.
  • With a leak valve, the vacuum level can be adjusted.
  • It comes with a pressure gauge, so it's convenient to check the vacuum.
  • Original dry vacuum pump with corrosion resistant type.

Spec

  • Model number: GM-20S-AC
  • Specification: 1 stages
  • Achieving pressure: -0.08MPa
  • Size (mm): 270 x 130 x 210
  • Diaphragm: PTFE (poly tetrafluoroethylene) coating
  • Exhaust speed (50/60Hz): 20/24L/min
  • Noise: 50dB
  • Safety device: Motor overheat protection equipment
  • Power supply: 100VAC 50/60Hz
  • Power consumption: 200W
  • Power cord length: 1.5m
  • Connection port: φ6mm hose nipple
  • Weight: 7.5kg

‘
‘
‘
